• Front Fireplace Discharge Ducted Passive Heat Kit
1 1

Majestic

Ducted Passive Heat System for Heat Management

$629.00
$629.00
Shipping calculated at checkout.

PHFR-MCE-36

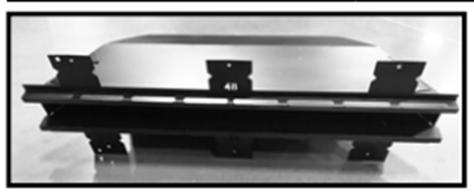

The Ducted Passive Heat (PHFR-MCE-XX) System conveys warm air from the fireplace into the same room through a front discharge slot connected to the appliance heat management knock outs with the provided flex ducting.

Installation of the Ducted Passive Heat kit must be done in conjunction with the appliance installation. When ordering, go by the part number in your installation manual and/or size of your fireplace.
Installation of this kit MUST be performed by a qualified service technician.

Requires Ducted Passive Heat Trim Kit—Purchased Separately

Features
The Ducted Passive Heat kit is tested and safe when it is installed in accordance with this installation manual. It is your responsibility to read all instructions before starting installation and to follow these instructions carefully during installation.
The Passive Heat kit is carefully engineered and must be installed only as specified. If you modify it or any of its components, you will void the warranty, and you may possibly cause a fire hazard. Installation must be done according to applicable local, state, provincial, and/or national codes.
Specifications
Manuals
Installation Instructions
More information View images
Front Fireplace Discharge Ducted Passive Heat Kit
