Superior

EPA Certified CAT High Efficiency Wood Burning Fireplace WCT6940WS

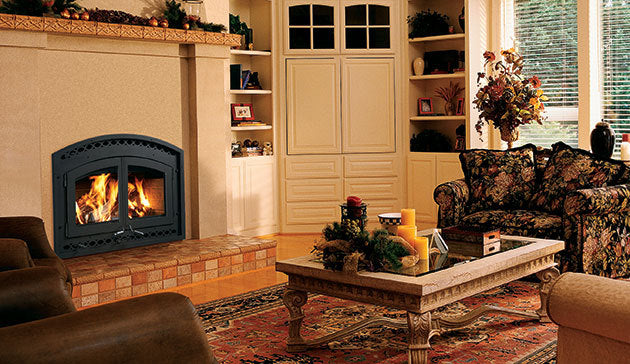

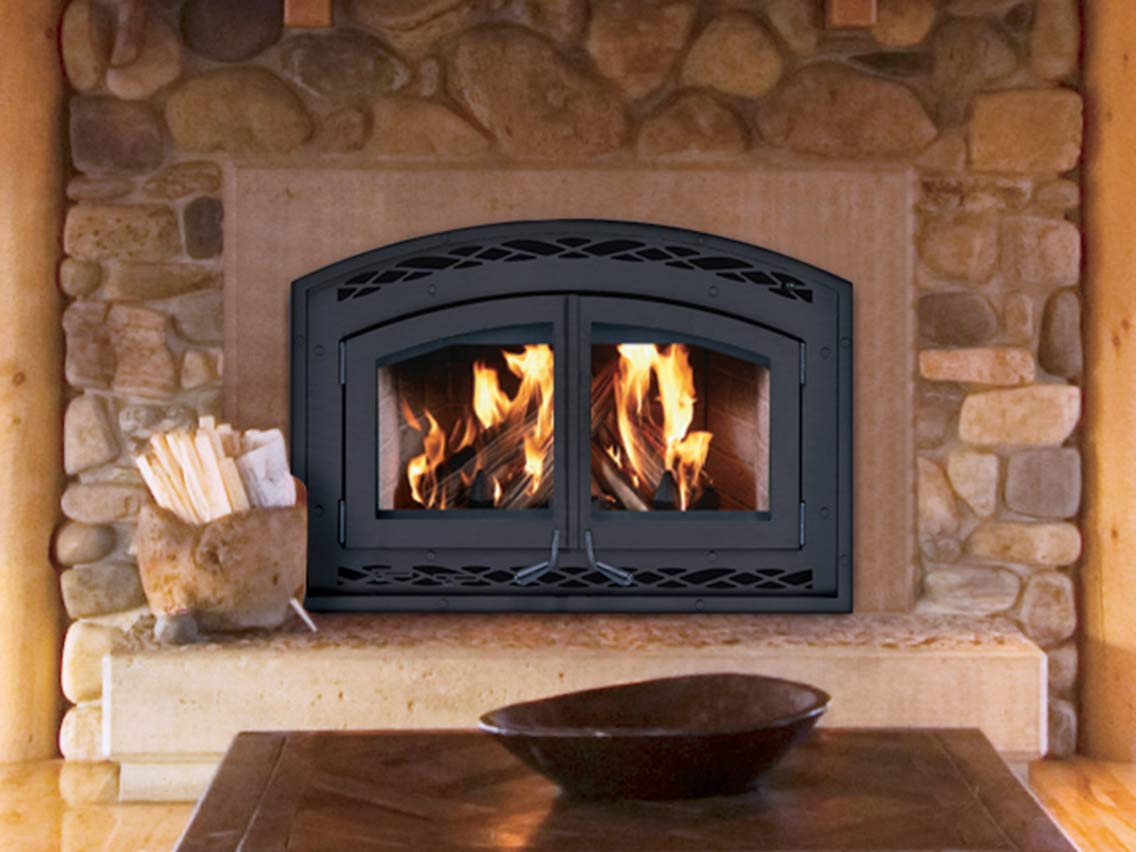

The WCT6940 beautifully combines the craftsmanship of a traditional masonry fireplace with the power of clean controllable combustion heating. The gorgeous door and facade allow you to achieve a customized look that reflects your style. With outstanding heat output and high-efficiency operation, the WCT6940 wood-burning fireplace excels.

With an intricate facade outlines a broad pair of steel doors in this EPA-certified wood burning fireplace. Powerful catalytic combustion, insulation, ceramic glass and a 350 cfm blower keep hot air streaming. Textured white stacked refractory, cast iron log retainers, efficient air wash system, outside air kit and an outside air coupler are all standard.

Approved for use with 7" Chimney - IHP Brand Model Snap-Pak

Features

  • Circulating design features facade, arch doors and ceramic glass for optimum heat transfer
  • EPA variable-rate certified high-efficiency wood heater
  • Spacious 4.0 cubic foot insulated firebox that accepts up to 30” log size for increased performance
  • Steel double doors with heat resistant door handles that stay cool to the touch
  • Stacked textured refractory panels with integrated ash lip and decorative cast iron log retainer
  • Catalytic combustor for maximum performance
  • Bypass control: Greater airflow during startup for faster wood ignition and no smoke spillage when reloading
  • Includes insulated outside air kit (required for use)
  • 80,000 BTUs and heats up to 2,500 square feet*
  • Efficient air wash system that keeps glass clean
  • Includes heat activated 200 CFM variable-speed blower for time-delayed heat distribution
  • Durable high temperature paint finish
  • 20 Year Limited Warranty

*Square-feet heating capacities are approximations only. Actual performance may vary depending upon home design and insulation, ceiling heights, climate, condition and type of wood used, appliance location, burn rate, accessories chosen, chimney installation and how the appliance is operated.

Specifications

Options

Interior Liners

  • Refractory Stacked Come Standard

Doors (One Required Included In Price)

  • Smooth Steel

Facades (One Required Included in Price)

  • Smooth Steel

Forced Air Heating Kit

For forced air zone heating to multiple locations

Share the warmth. The optional Forced Air Kit provides up to 25% more heat from the same fire. This additional heat can be distributed up to 50 feet, to three additional rooms, including rooms on a lower floor. The included thermostat allows automatic control of heat distribution for balanced and controlled comfort.

** The forced air kit was not included in the EPA emissions testing for this fireplace, therefore cannot be sold as EPA certified

BISFWK-1 Starter Kit: for Wall or floor installations.

Includes: blower (BISZY); flex adaptor and 2 clamps (BISAF), blower variable speed control (VRUW), thermo-disc (VTU), blower flex adaptor (BISAVF) and back draft
damper (BISBD).

5FLEX15: Flex 5" I.D. X 15' long

5FLEX25: Flex 5" I.D. X 25' long

HCTW: Heating/Cooling thermostat - 120 volt

Be Sure To Check Local Codes and Ordinance For Permitted Use
Read Installation Manual Thoroughly before Purchase and Installation

For Installation Dimensions Click on the Manuals Below

Click Here to Download Brochure

Click Here to Download Specification Sheet

Click Here to Download Owner’s Manual, Installation Instructions, and Warranty Information
