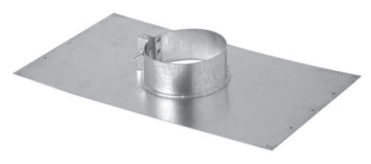

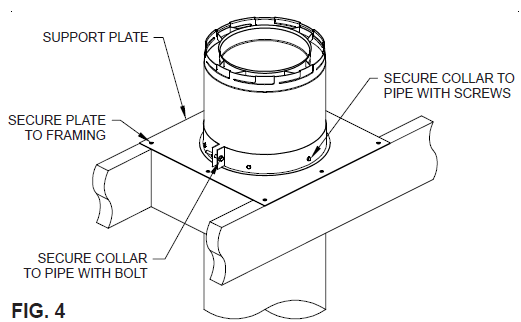

The support plate is used to support vertical runs. It must be secure to a frame with nails or screws. You then slide the vent section through the Support Plate and secure by firmly tightenng the Support Collar bolt around the pipe so that the Support Collar rests upon the support plate. Secure Collar to pipe with (6) #8-1/2 sheet metal screws.
*Maximum distance between vertical supports is 30 feet.
