Heat Flo Kits for Linear 45" Vent Free Fireplaces HTFLO-VF45 F4760

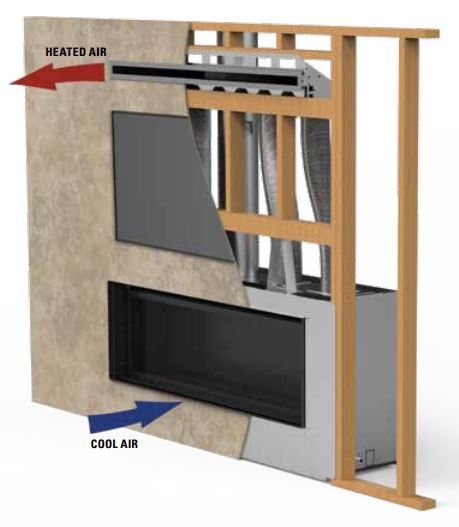

The HeatFlo™ system is designed to redirect the fireplace's convective heat from the front of the unit to a higher location on the wall. The use of this kit allows for TV installations closer to the fireplace or in recessed wall cavities above the fireplace.
When installing this kit, reference the framing dimensions and follow the framing instructions shown on the fireplace installation instructions. Follow all other installation requirements for the fireplace as detailed in the installation manual.

*The HeatFlo Extension Kit is required when the distance from the bottom of the register to the top of the appliance exceeds 70”.

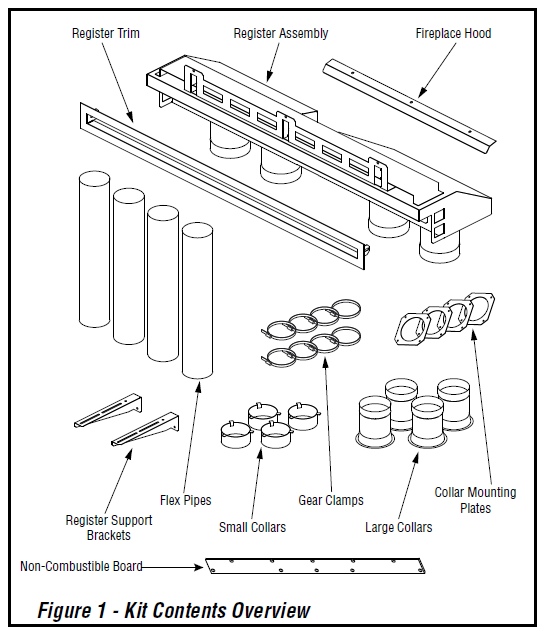

KIT CONTENTS
1 ea. Register Assembly
1 ea. Register Trim
4 ea. 4-1/2” x 24” Flex Pipe (stretches up to 70” in length)
8 ea. Gear Clamp
2 ea. Register Support Bracket
18 ea. Screws
4 ea. Collar Mounting Plate
4 ea. Small Collar
4 ea. Large Collar
1 ea. Fireplace Hood
1 ea. Non-Combustible Board
