This outdoor see-through kit is designed to allow the fireplace to be viewed from the outside on an exterior wall while creating a weatherproof barrier to the fireplace's viewing area. It is compatible with both direct vent and vent-free model fireplaces. Be sure to check your owner's manual or installation instructions to be sure you have the correct part number. This is not a universal conversion kit.

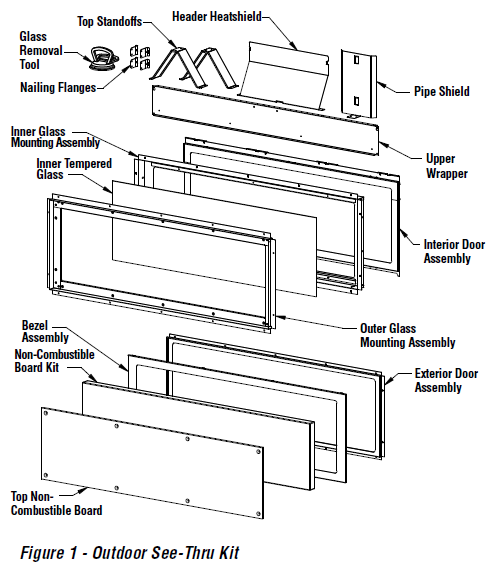

KIT CONTENTS
2 ea. Top Standoffs
1 ea. Header Heatshield (DV only)
1 ea. Pipe Shield (DV only)
4 ea. Nailing Flanges
1 ea. Upper Wrapper
1 ea. Interior Door Assembly
1 ea. Inner Glass Mounting Assembly
1 ea. Inner Tempered Glass
1 ea. Outer Glass Mounting Assembly
1 ea. Exterior Door Assembly
1 ea. Bezel Assembly
1 ea. Non-Combustible Board Kit
1 ea. Top Non-Combustible Board
1 ea. Glass Removal Tool
54 ea. Phillips Head Bugle Drywall Screws
18 ea. #10 Hex Head Screws
14 ea. #10 Socket Head Screws
