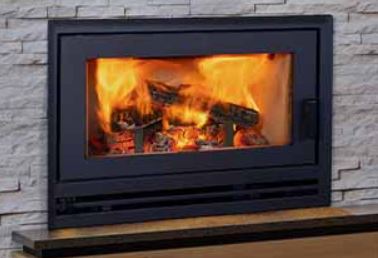

Wood Burning EPA Certified Non-Catalytic High Efficiency Fireplace WCT4920

• Circulating design features facade, square or arch doors and ceramic glass for optimum heat transfer
• EPA variable-rate certified high-efficiency wood heater
• 2.0 cubic foot insulated firebox that accepts up to 19” log size for increased performance
• Smooth refractory panels with integrated ash lip and steel log retainer
• Air combustion control for variable heat output with air boost for faster wood ignition during startup
• Includes insulated outside air kit (required for use)
• 55,000 BTUs and heats up to 1,500 square feet*
• Efficient air wash system that keeps glass clean
• Steel doors available with heat resistant door handle that stays cool to the touch
• Includes heat activated 200 CFM variable-speed blower for time-delayed heat distribution
• HeatFlo air kit and/or thermostatically controlled forced air kit available (three maximum outlets)
• Durable high temperature paint finish
• 20 Year Limited Warranty

*Square-foot heating capacities are approximations only. Actual performance may vary depending upon home design and insulation, ceiling heights, climate, condition and type of wood used, appliance location, burn rate, accessories chosen, chimney installation and how the appliance is operated.

Specifications

Interior Liners

•

  Grey Smooth Refractory Panels (Included)

Doors (One Required)

•

  F1851/BTCECBKC Cast Iron Door Arched in Black

•

  F1849/BTCECBK Smooth Steel Door Arched in Black

•

  F4780/DSSPBLK Steel, Square Pane Door in Black

Facades (One Required)

•

  F4782/FCFSOBLK Clean Face Facade Square Open in Black (F3790 - HeatFlo Kit Required)

•

  F4781/FLVAOBLK Louvered Facade, Arch Open in Black

•

  F4783/FLVSOBLK Louvered Facade, Square Open in Black

Forced Air Heating Kit

For forced air zone heating to multiple locations

Share the warmth. The optional Forced Air Kit provides up to 25% more heat from the same fire. This additional heat can be distributed up to 50 feet, to three additional rooms, including rooms on a lower floor. The included thermostat allows automatic control of heat distribution for balanced and controlled comfort.

** The forced air kit was not included in the EPA emissions testing for this fireplace, therefore cannot be sold as EPA certified

BISFWK-1 Starter Kit: for Wall or floor installations.

Includes: blower (BISZY); flex adaptor and 2 clamps (BISAF), blower variable speed control (VRUW), thermo-disc (VTU), blower flex adaptor (BISAVF) and back draft
damper (BISBD).

5FLEX15: Flex 5" I.D. X 15' long

5FLEX25: Flex 5" I.D. X 25' long

HCTW: Heating/Cooling thermostat - 120 volt

HeatFlo Air Kit

For natural flow zone heating to multiple locations

F3790 EPA-HEATFLO-KIT EPA Fireplace HeatFlo Convection Kit

Be Sure To Check Local Codes and Ordinance For Permitted Use
Read Installation Manual Thoroughly before Purchase and Installation

For Installation Dimensions Click on the Manuals Below
